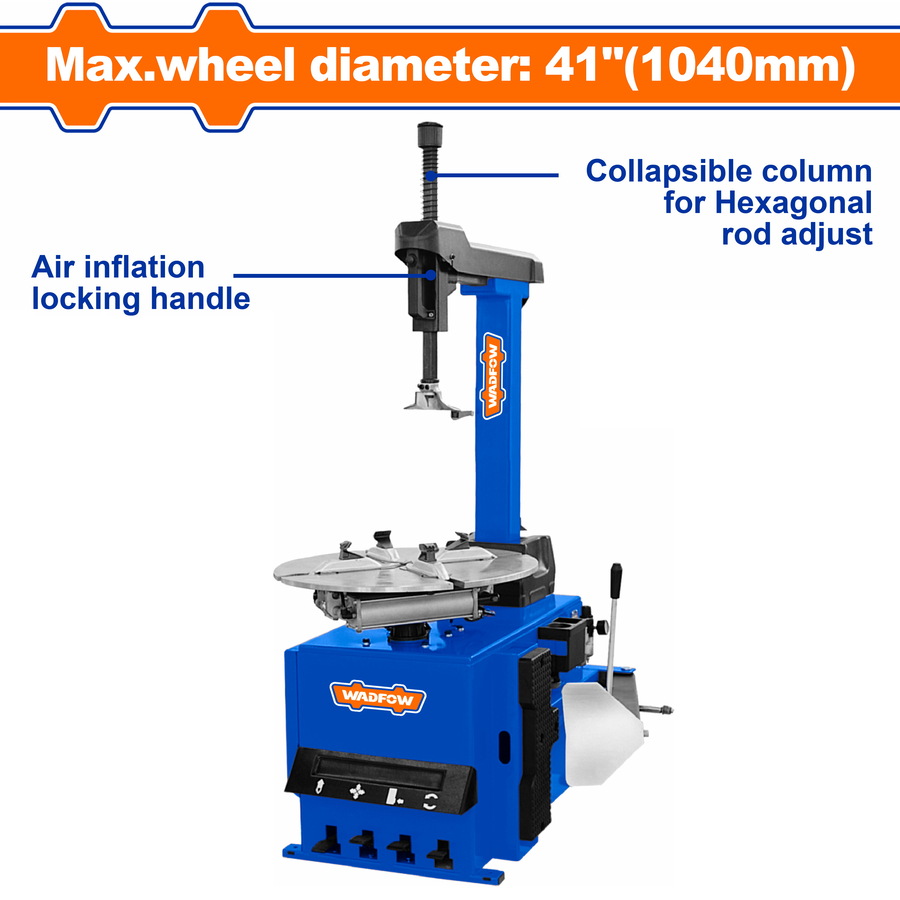

0.75KW / 41″ Full Automatic Car Tire Changer – WTK2A41

The WTK2A41 is a full automatic pneumatic car tire changer featuring a tilting column design. It is powered by a 0.75kW motor and operates on a voltage of 220-240V~50Hz. This machine can handle wheels with a maximum diameter of 41 inches (1040mm) and a maximum width of 14 inches (355mm). It offers outside clamping for rims ranging from 10″ to 22″ and inside clamping for rims from 12″ to 24″. The required air supply is 8 Bar, and it boasts a bead breaker force of 2500Kgs with a noise level of less than 70dB. The unit has a net weight of 205KG and is packed in a carton box.

Key Features and Specifications:

• Model: WTK2A41
• Type: Full automatic pneumatic car tire changer with tilting column
• Motor Power: 0.75 kW
• Voltage: 220-240V~50Hz
• Maximum Wheel Diameter: 41 inches (1040 mm)
• Maximum Wheel Width: 14 inches (355 mm)
• Outside Clamping Range: 10″ ~ 22″
• Inside Clamping Range: 12″ ~ 24″
• Air Supply: 8 Bar
• Bead Breaker Force: 2500 Kgs
• Noise Level: <70 dB
• Net Weight: 205 KG
• Packaging: Carton box

Detailed Breakdown:

• Full Automatic Pneumatic Operation: This indicates that the tire changing process is largely automated and powered by compressed air. This typically includes functions like clamping the wheel, rotating the turntable, and operating the bead breaker and mounting/demounting tools, reducing manual effort and increasing efficiency.
• Tilting Column: The tilting column design allows for more working space around the tire and wheel assembly, making the mounting and demounting processes easier and accommodating a wider range of wheel sizes. It also helps in preventing damage to the rims.
• Motor Power and Voltage: The 0.75kW motor provides the necessary power for the automated functions. The 220-240V~50Hz specification indicates the standard electrical requirements for operation in many regions, including Ghana.
• Wheel Capacity: Similar to the portable model WQT1A01, this machine can handle wheels up to 41 inches in diameter and 14 inches in width, covering a broad spectrum of passenger vehicle tires.
• Clamping Ranges: The dual clamping ranges (outside 10″-22″ and inside 12″-24″) provide versatility in securing different types and sizes of wheels, including those with varying rim designs.
• Air Supply Requirement: An air supply of 8 Bar is necessary to power the pneumatic components of the machine. This means an air compressor capable of delivering this pressure is a prerequisite for operating the tire changer.
• Bead Breaker Force: A bead breaker force of 2500 Kgs is substantial, indicating the machine’s capability to efficiently separate even stubborn tire beads from the rim.
• Low Noise Level: A noise level of less than 70dB is relatively low for industrial machinery, contributing to a more comfortable working environment.
• Weight and Portability: With a net weight of 205 KG, this is a significantly heavier and less portable unit compared to the WQT1A01. It is designed for more stationary use in a workshop or garage setting.
• Packaging: The carton box packaging is standard for shipping and suggests that some assembly might be required upon arrival.

Potential Applications:

• Automotive Repair Shops: Handling a high volume of tire changes efficiently.
• Tire Service Centers: Specialized in tire-related services.
• Car Dealerships: Servicing vehicles in their inventory and customer vehicles.
• Large Garages: Where frequent tire changes are performed.
